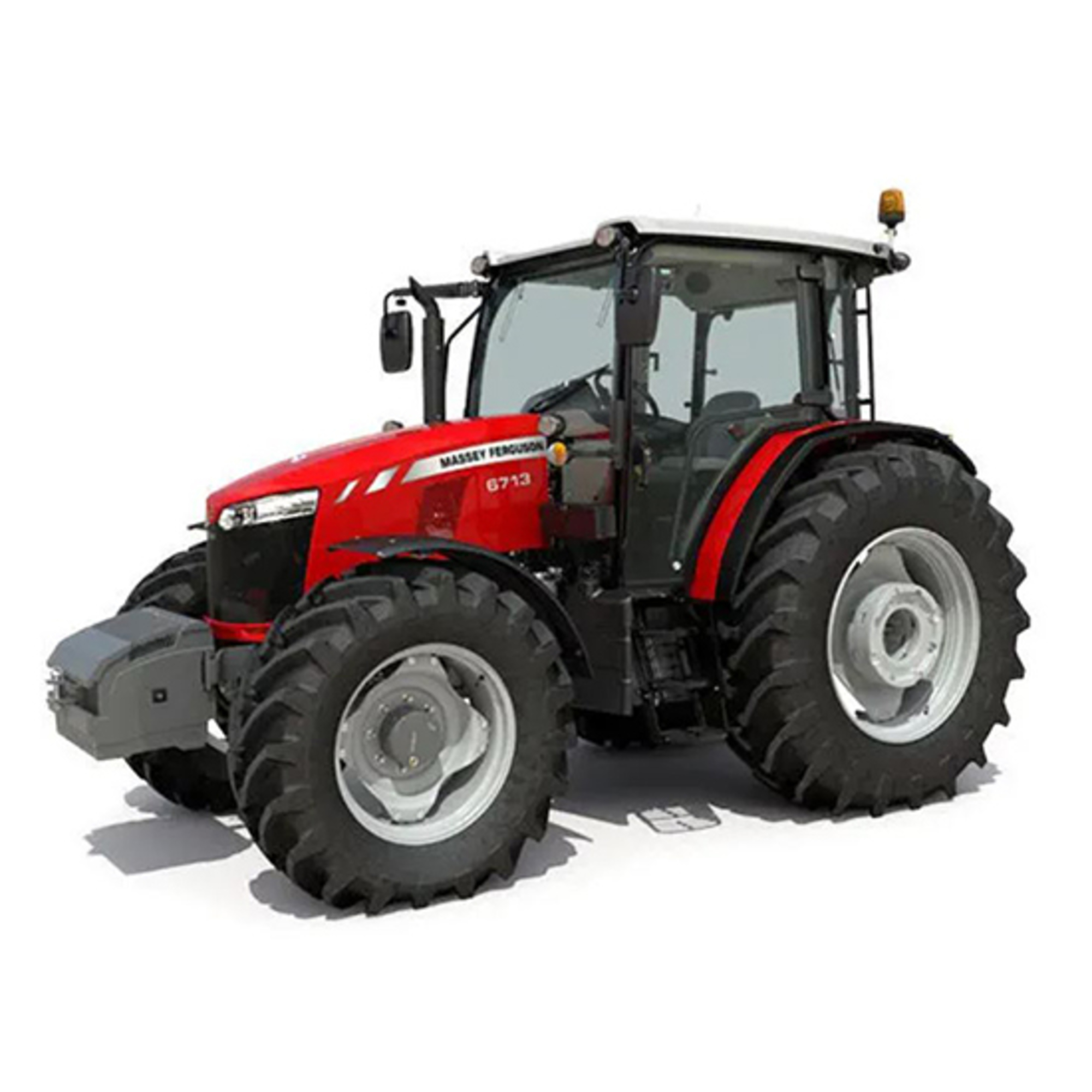

MF 6700 | 112-132 HP

Description

The new workhorses of the world

With this new and straightforward range of tractors, Massey Ferguson has taken the concept of the 130hp tractor and re-engineered it from the ground up to meet the needs of present and future farming.

In this power bracket, no other range on the market today offers such an array of build specifications, options and accessories – all designed to help tailor your machine exactly the way you need it for your farming operation.

Key Features:

Horsepower: 112-132

Synchronised Mechanical Transmission: 12×12

AGCO Power Engine: 4.4 Litre

Max Lift Capacity: 5,200 kg

Electronic Linkage Control

Modern, Efficient & economical engine

FEATURES:

Driveline:

Understated and yet probably the single most important part of any Massey Ferguson tractor is its driveline. Every component of the chassis has been designed from a blank sheet of paper to boast immense strength, a major factor in an agricultural tractor’s overall performance. This modern design provides versatility, power, durability and outstanding capability to the MF 6700 Series.

Engine:

Renowned for reliability, ruggedness and fuel economy, the 4.4-litre AGCO Power four-cylinder engine provides the heart of the MF 6700 Series, delivering 112 to 132 hp. With both tractor and engine coming from the same manufacturer, you can be sure that product quality is on exactly the same level, while compatibility and efficiency cannot be bettered.

The engines used in MF 6700 Series tractors are all of a long stroke design that provides high levels of torque across a broad speed range. Maximum torque is achieved at low engine speeds: 1450 revs/min on the MF 6700 models. Not only is diesel use minimised, but so too are noise and wear and tear, resulting in lower fuel bills and a more pleasant operator experience.

Transmission:

The Massey Ferguson 6700 Series tractors feature an all-new synchronised transmission, already proven on the MF 4700 and MF 5700 series, which provides a total of twelve forward and twelve reverse speeds courtesy of two ranges. Six gears are within the 4-12km/hr typical fieldwork range, while maximum speed is 40km/hr.

The right speed for each job is easily selected using gear levers that are within easy reach, yet positioned neatly to hand of the driver, ensuring an unimpeded passage when mounting/dismounting. A single-plate, dry-type clutch is easy to operate and simple to service. The optional Power Shuttle provides fingertip forward/reverse shifts without using the clutch as well as a button on the gear lever to also shift gears.

Super Creeper option is also available when the lowest speeds, down to 90m/hr*, are required for the job in hand.

* at 1400 rev/min with 18.4 R 38 tyres.

Hydraulics & PTO

The open centre gear pump hydraulic system produces 98l/min for the auxiliaries. This also supplies the electronic controlled rear-linkage to give a lift capacity of 5,200 kg.

Direct Drive PTO: Each model is fitted with a 35mm six-spline PTO shaft providing 540, 540E or 1000 PTO speeds and protected by an independent PTO clutch (IPTO). The electronics control the rate of engagement for more reliability; smoother, regulated and adjusted for the optimum rate of engagement to provide a reliable engagement of the PTO whatever the engine speed and the size of the implement.

Three Point Linkage: The rear linkage has been optimised specifically to complement this size of tractor. It boasts an impressive lift capacity of 5,200 kg, in order that heavy-mounted equipment can be lifted with ease.

It comes with the industry leading Electronic Linkage Control (ELC) as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements plus working height for other implements. It brings more responsiveness and accuracy because the electrics operate immediately – this means that the draft reacts accurately to ensure maximum traction at all times to minimise wheel slip and fuel consumption.

Operator Environment:

A tractor that has been designed with simplicity of operation at its heart doesn’t have to have a basic operator environment. Designed from the outset with an emphasis on comfort and ease of use, the MF 6700 Series tractors make hard work a pleasure.

Grab rails mounted on the large opening doors provide easy access to the steps, mounted directly to the machine, while a completely flat floor creates the most accessible and spacious operator environment on the market.

Once seated, manually-operated controls are sited in the most ergonomic positions, making them comfortable to operate and reliable over the course of many thousands of tractor hours.

From the ergonomically crafted right-hand side console and controls, to the smartly positioned gear and range levers and functional dashboard, nothing is missing to make your long and hard day very productive with less fatigue and more output.
