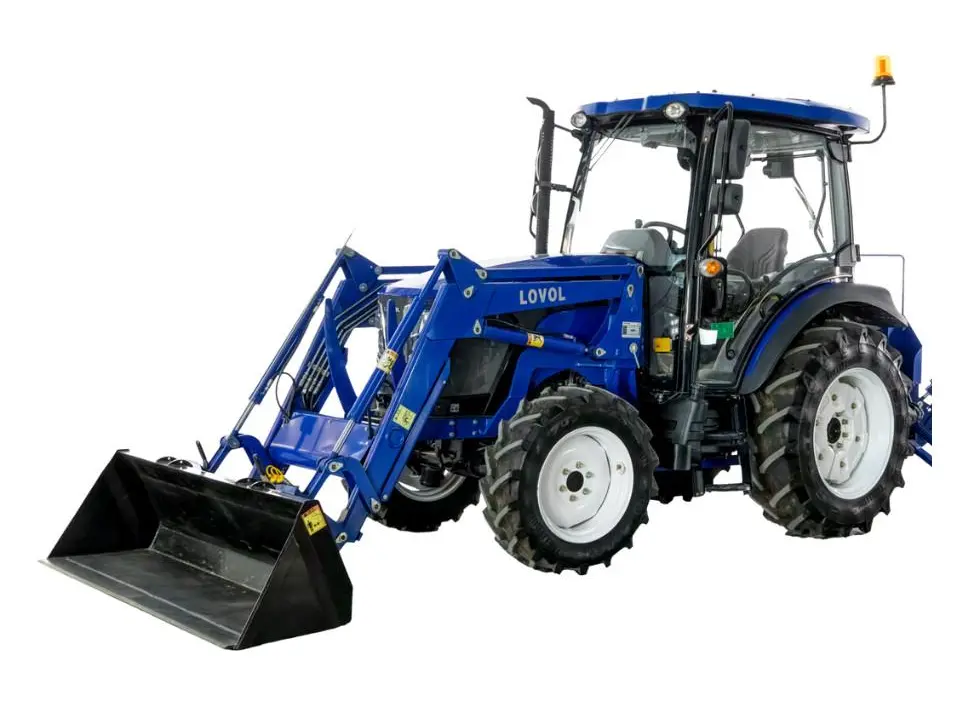

Lovol TB 754 Tractor
Designed to meet the demands of professionals, the Lovol TB 754 tractor is a robust, reliable and versatile model, perfect for heavy agricultural and industrial tasks or for harsh winters. With its high-performance South Korean engine and numerous features, the Lovol TB 754 tractor is the indispensable ally for those looking for quality and durability.
The key points of the Lovol TB 754 tractor:
- Powerful Doosan D24 engine: EPA4F, 4 cylinders
- Impressive PTO: 63 HP to power your most demanding equipment.
- Unmatched warranty: 10 years or 3,500 hours, an industry exclusive
- Options: ROPS (no cab) or cab model
Detailed technical specifications of the Lovol TB 754 tractor
Dimensions and manoeuvrability
- Dimensions (L x W x H): 162″ x 72″ x 114″
- Weight:
- ROPS Model: 5,875 lbs (2,710 kg)
- Cab model: 6,460 lbs (2,930 kg)
- Wheelbase: 81.5″ (2,070 mm)
- Turning radius:
- With brakes: 12.8 ft (3.9 m)
- Without Brakes: 15.09 ft (4.6 m)
- Ground Clearance: 14.17″ (360 mm)
Engine (Doosan D24)
- Type: Turbo Diesel, 4 Cylinder, EPA4F
- Rated power: 73.75 hp (55 kW)
- Displacement: 2,392 L
- Emission system: EGR + DOC
- Optimum engine torque: 2,400 rpm
Drivetrain and performance
- Transmission: Synchronized inverter 12F+12
- Differential lock: Rear axle, electro-hydraulic control
- Maximum speed:
- Front: 38.2 km/h (23.7 mph)
- Rear: 33.5 km/h (20.8 mph)
Hydraulic system
- Type: Center opening
- Lift capacity at 24″ from PTO: 2,866 lbs (1,300 kg)
- Pump Flow Rate: 45 L/min
- Hydraulic outputs: 2 standard rear outputs
PTO (PDF)
- Rated power PDF: 63 HP (47 kW)
- PTO Speed: 540 RPM
- Shaft PDF: ø 35.6 mm
Fluid Capabilities
- Fuel tank: 60 L
- Cooling system: 10 L
- Engine oil: 6.5 L
- Transmission: 39 L
Tires/Wheels
- Front: 300/70R20
- Rear: 380/85R30
- Rear Tread Width: 55.11″ (1,400 mm)
Options and comfort
- Air conditioning: included in the cab model
- Air filtration: double element with safety filter
- Cooling system: Aluminum radiator with fan
- Brakes: Wet discs for increased reliability
Why choose the Lovol TB 754 tractor?
The Lovol TB 754 stands out for its ability to perform a variety of tasks, exceptional durability and consistent performance, even in harsh conditions. With its 10-year or 3,500-hour warranty, the Lovol TB 754 tractor is a safe investment for demanding professionals.
Several loader attachment equipment can be installed, most of which can be attached and dismantled in less than a minute, without tools!
LOVOL tractors are the most equipped on the market. By opting for a LOVOL tractor, you get a host of added value advantages:
- 10-year limited warranty – the longest warranty in the industry
- Front loader and bucket included
- Skid-Steer Front Loader Hitch (SSQA)
- Heavy-duty 3-point hydraulic hitch
- Oil outlet at the front – 3rd function
- 2 rear hydraulic outlets
- Higher tractor weight than the competition for better traction
- Engine of South Korean origin Doosan
- Regenerative diesel engine – without DPF/Urea (without DEF)
- Ceramic clutch for heavy-duty work prevents slippage of a conventional clutch
- Standard intercooler for better performance
- Standard agricultural radial tires and valve protector to limit punctures
- Weighted in the rear tires for better traction
- Large front axle for heavy-duty work
- Straight rear axle with adjustable extension to meet the needs of different traction and stabilization applications. Provides 10 inches of additional width
- 800 CCA battery for better starts in cold weather
- Air conditioning included (TB models)
- Sunroof (TB models)
- Grammer-renowned seat for ultimate comfort
- Front and rear windshield wipers
- AM/FM/USB/AUX Radio (TB Models)
- Rotating alarm light on all models
- Sun visors for improved visibility and safety (TB models)
- Two replacement oil filters to simplify maintenance
- Parts manual to make it easier to order your parts
- Set of tools to do your minor repairs and maintenance
